規格
主要特徵
功能簡介：

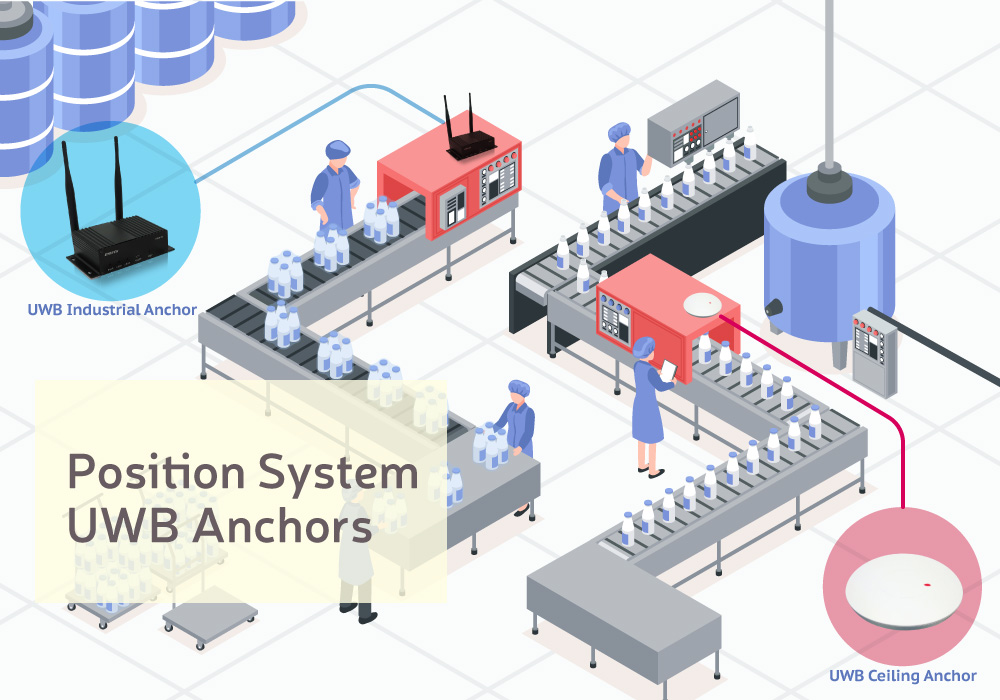

UWB 工業型定位基站，整合了先進的UWB 測距模塊，與本公司發展的UWB 定位標籤及配合定位系統達到室內的精準定位，室內定位精度最高可以達到30CM 以下。因各種環境的需求不同，我們推出幾款不一樣的定位基站以適應配合不同場域的應用，並結合有線的 RJ45 及2.4G 無線的 WiFi 達到系統的有效應用與建置。
本產品有分一般版本及信號增強版本(Power Amplifier)版本，要達到更好的效果，基站與TAG都必須為有帶功率放大的PA版本。一般版本的UWB定位距離，建議為25M~40M，帶PA版本則為60M~200M 視環境的情況而調整。

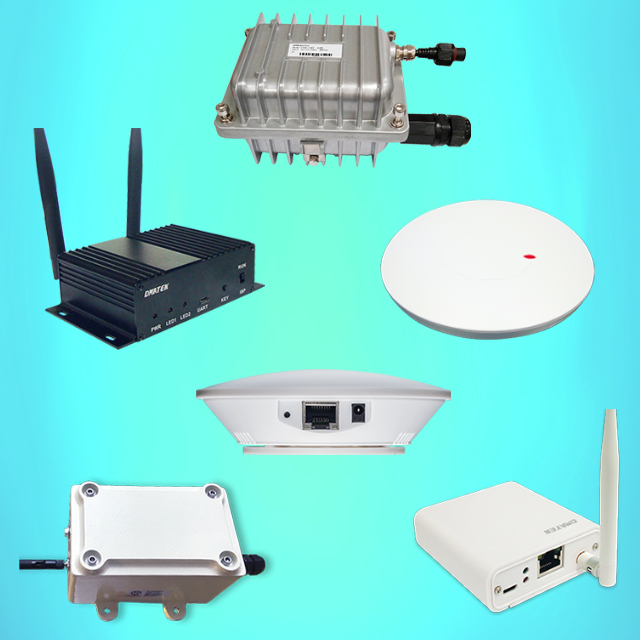

 UWB 工業型定位基站｜UWB-02 |  UWB 吸頂型定位基站｜UWB-03S |  UWB 防水型定位基站｜UWB-04 |
 UWB 吸頂型定位基站｜UWB-03 |  UWB 商業型定位基站｜UWB-01 |  UWB 防爆型定位基站｜UWB-05X |
周邊介面

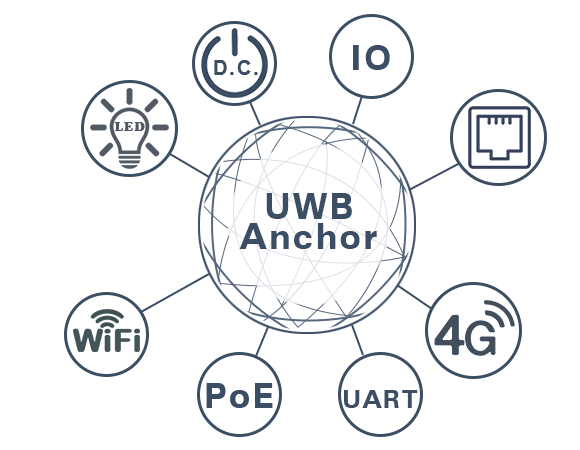

| 所有的基站，都有提供RJ45/WiFi 的通訊界面及PoE和DC電源，非常方便各種不同環境的使用。 每個基站都配有LED燈可以了解Anchor的狀態，部分基站還可以外接IO/UART/4G等功能 |
|

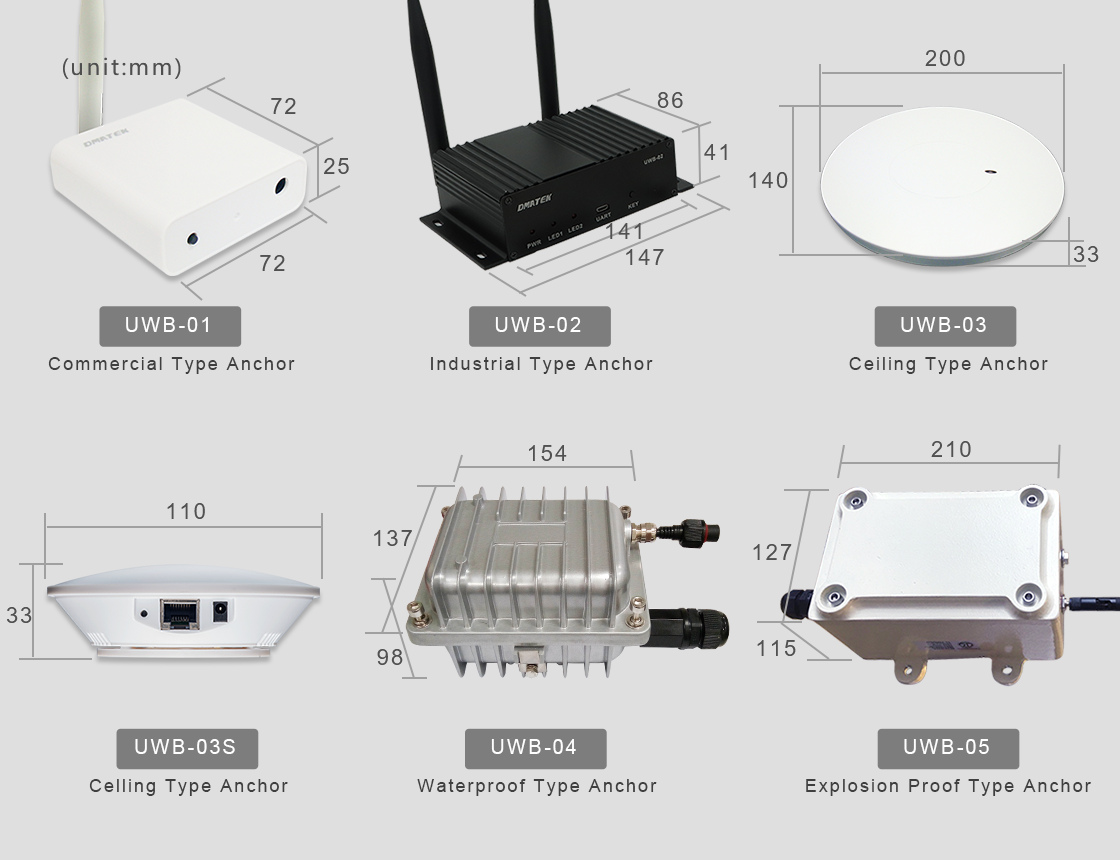

產品規格
| Power | Features Set | Sensors | ||||||||||
| Anchor Name | PoE Power | DC power | AC Power | Type | 4G | Communication Interface | Extenal IO/RS232 | Installation | Water- proof | explosion proof | Acc | Pressure |
| UWB-01 | ✔ | ✔ | ✖ | Commercial | ✖ | UWB/RJ45/WiFi | ✖ | Wall-hanging | ✖ | ✖ | ✖ | ✖ |

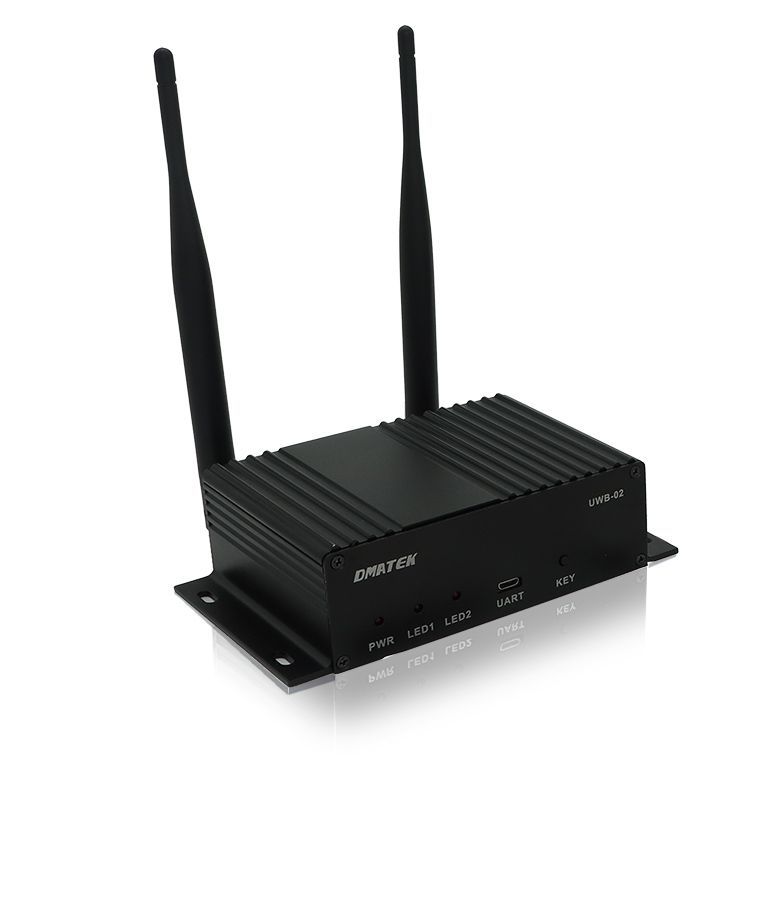

| UWB-02 | ✔ | ✔ | ✖ | Industrial | ✔ | UWB/RJ45/WiFi | ✔ | Wall-hanging | ✖ | ✖ | ✖ | ✔ |

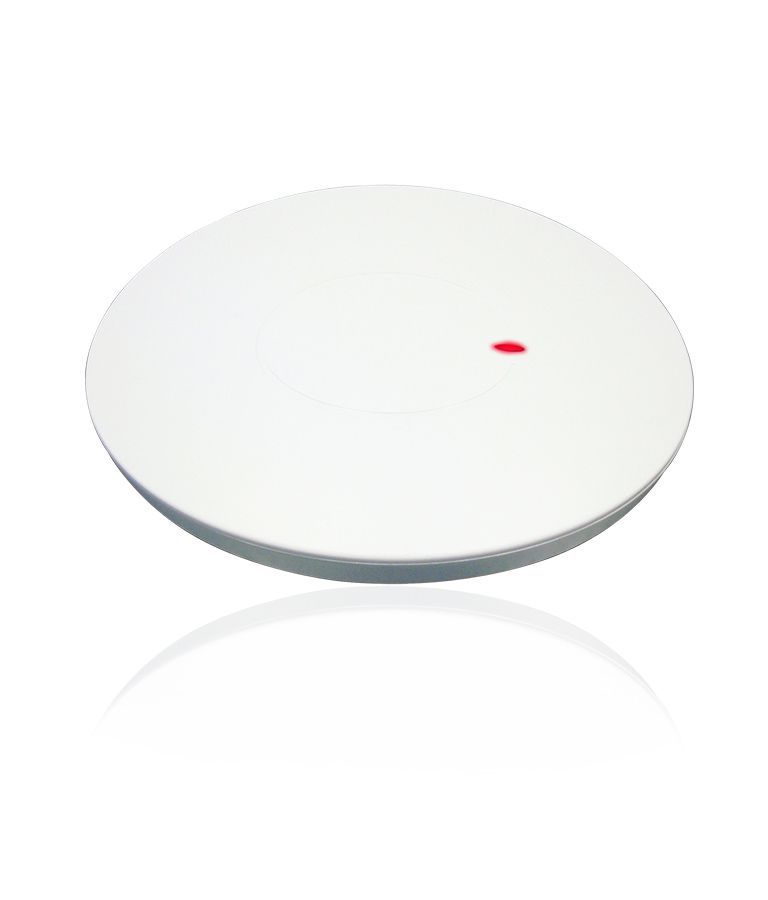

| UWB-03 | ✔ | ✖ | ✔ | Ceiling | ✖ | UWB/RJ45/WiFi | ✖ | Celling type | ✖ | ✖ | ✖ | ✔ |

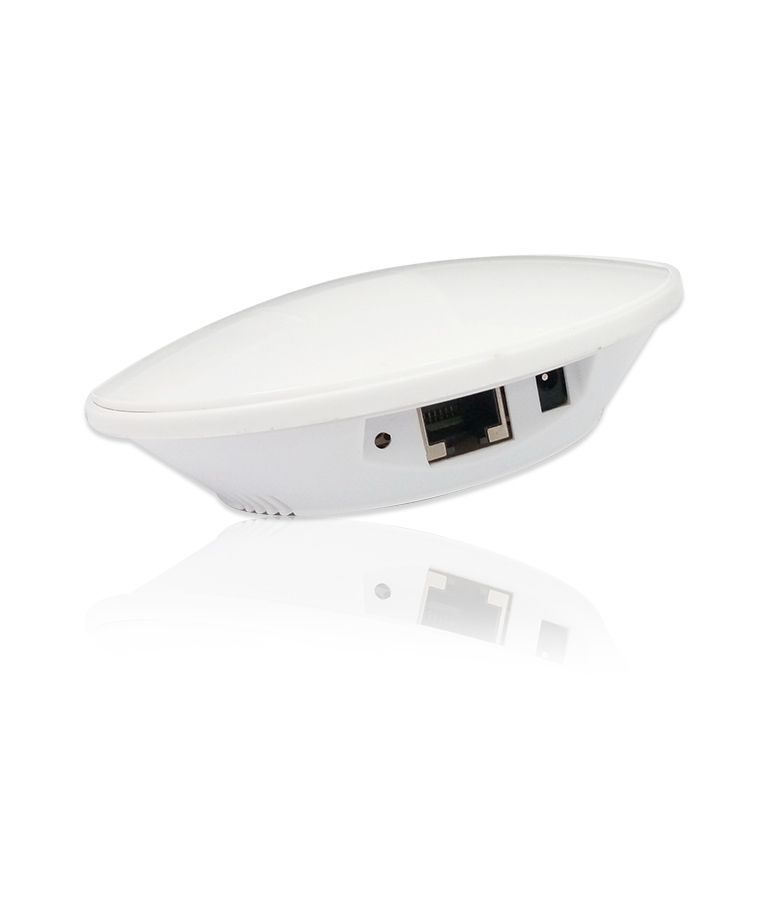

| UWB-03S | ✔ | ✔ | ✖ | Ceiling | ✖ | UWB/RJ45/WiFi | ✖ | Celling type | ✖ | ✖ | ✖ | ✔ |

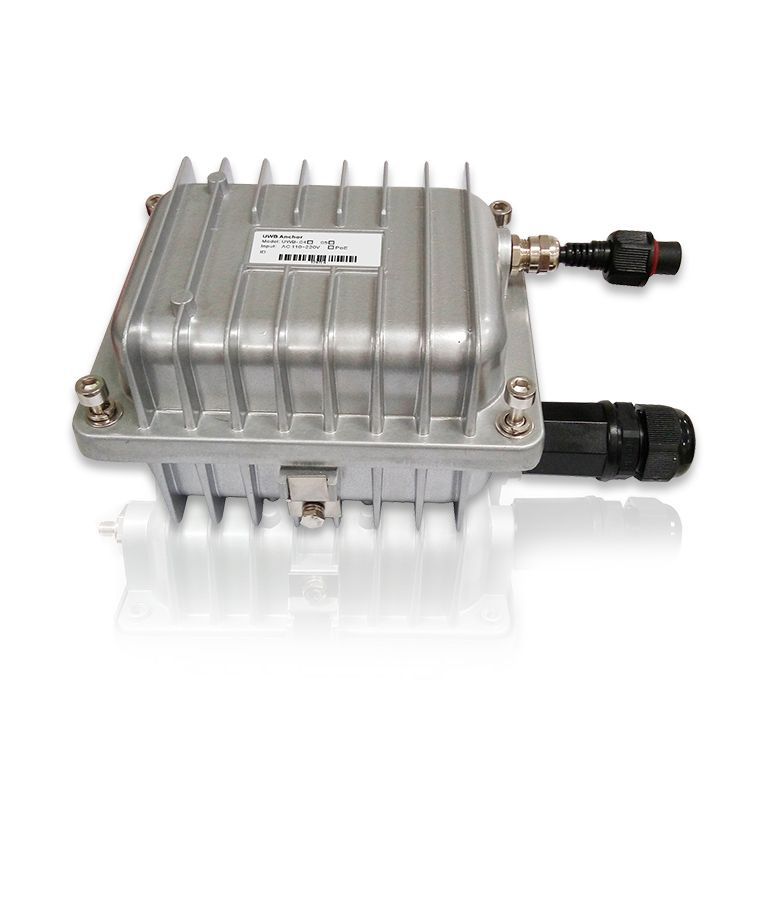

| UWB-04 | ✔ | ✖ | ✔ | Waterproof | ✖ | UWB/RJ45/WiFi | ✖ | Wall-hanging | ✔ | ✖ | ✖ | ✖ |
| UWB-05 | ✔ | ✖ | ✔ | Explosion Proof | ✖ | UWB/RJ45/WiFi | ✖ | Wall-hanging | ✔ | ✔ | ✖ | ✖ |
| Name | Power | Output power spectral density-30dBm/Mhz | Output power spectral density(PA) -21dBm/Mhz | work load 2W |
| UWB-01 | DC+5V/PoE | ✔ | ✖ | ✔ |
| UWB-02 | DC+5V/+12V/PoE | ✔ | ✔ | ✔ |
| UWB-03 | AC 110~220V/PoE | ✔ | ✖ | ✔ |
| UWB-03S | DC +5V/PoE | ✔ | ✔ | ✔ |
| UWB-04 | AC 110~220V/PoE | ✔ | ✔ | ✔ |
| UWB-05 | AC 110~220V/PoE | ✔ | ✔ | ✔ |
