Thunderbolt™ 4 / USB4 Dock Pro

型號
DBD1330
供應商
東碩資訊股份有限公司更多該商品之資訊
請求報價
聯繫供應商

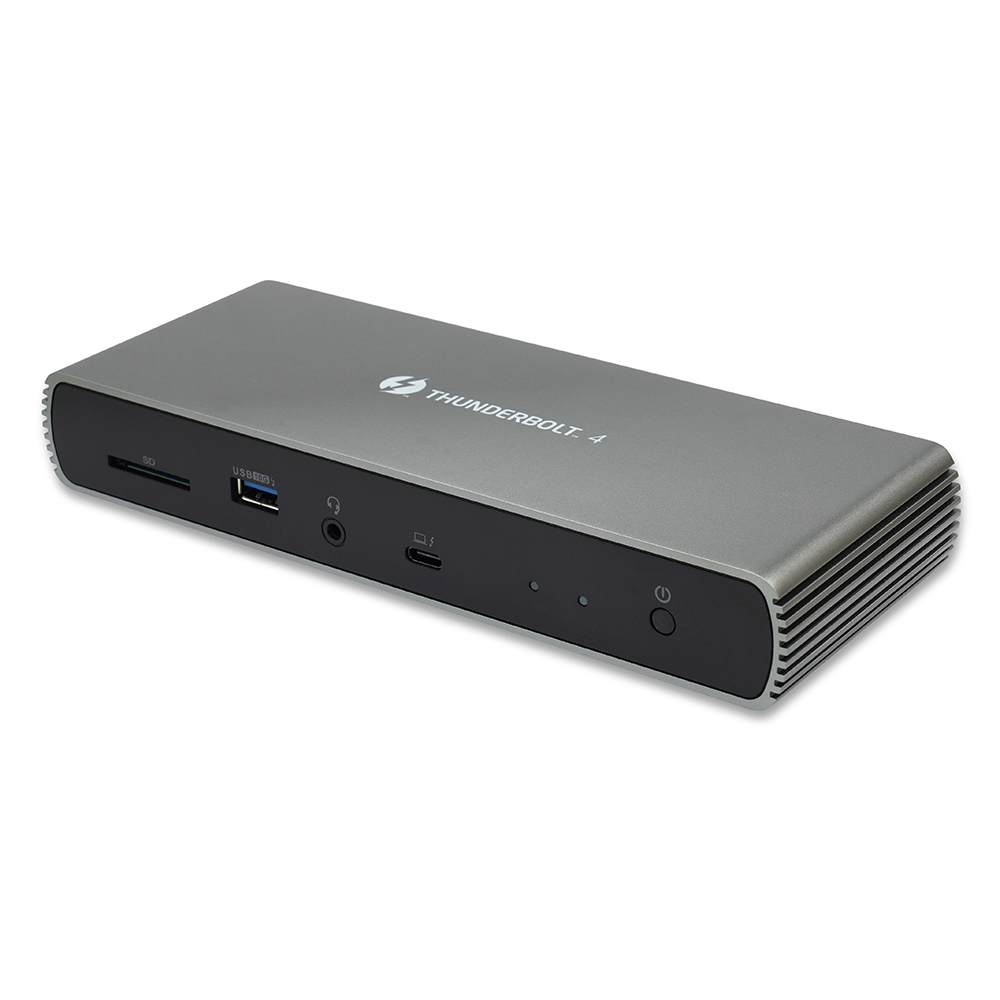

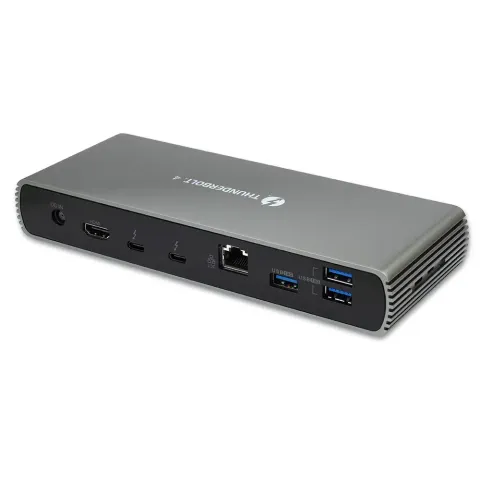

Thunderbolt™ 4 / USB4 Dock Pro

主要特徵

The Thunderbolt™ 4 / USB4 Dock Pro is a pro-level docking station designed for demanding high-productivity workflow needs based on Intel Thunderbolt 4 Goshen Ridge controller. It is not only for Thunderbolt™ 4 users, this versatile device is backward compatible with Thunderbolt™ 3, USB 2.0, VESA Alternate mode (MFDP), and USB4, also working on both Windows and Mac systems.

The dock provides a full-powered solution with dynamic PD up to 96W for your laptop charger. The equipped Thunderbolt™ 4/USB4 downstream ports can connect up to Thunderbolt and USD-C peripherals with optimal performance of lightning-fast 40Gbps transfer speed and high-resolution video output, you can also enjoy a single display up to 8K@30Hz via HDMI 2.1 and 2.5GbE Ethernet port, the features outfitted let creative professionals and gamers to handle any challenges they encounter in a production workflow.

The dock also offers legacy interfaces such as USB-A 3.1 10G ports with BC 1.2 / Apple Charge, SD 4.0 card reader, and Hi-RES headset Audio for maximum connectivity.



Feature


  • Thunderbolt 4 Ports
       - 1x Thunderbolt 4 / USB4 upstream port
       - 2x Thunderbolt 4 / USB4 downstream ports
  • Video Output Ports
       - 1x HDMI2.1 port with DSC pass-through
       - Thunderbolt 4 downstream port supports video output
       - Single 8K30 or 4K120 display
       - Dual 4K60 displays
  • PD Charging
       - PD 3.0 up to 96W
       - Supports 5 /9/15 /20V, up to 4.8A
  • I/O Ports
       - 4x USB-A 3.1 Gen2 (one port with BC 1.2 and Apple Charge supported)
       - 1x RJ45 Ethernet 2.5GbE
       - 1x SD4.0 Card reader
       - 1x Headset jack
  • Power Button
  • Firmware Upgradeable
  • USB-C Port Protection
       - Provides 20V short-to-VBUS over-current protection



Specification


Hardware Spec

Q'ty

Remark

Upstream port

Thunderbolt/USB-C port

1

Front, Support up to PD 96W

Downstream port

Thunderbolt/USB 4

2

Rear

HDMI 2.1

1

Rear

USB-A 10Gbps

3

Rear

USB-A 10Gbps

1

Front, with BC1.2 (5V/1.5A) and Apple Charge 2.1A

Ethernet

10/100/1000/2500Mbps

1

Rear

Card reader

SD 4.0

1

Front

Headset


1

Front

LED Indicator

Power LED

1

Green when power on

Thunderbolt 4 LED

1

Blue when link to Thunderbolt 4

Power In

DC 135W

1

20V/6.75A

Operation Temperature

0 to 35 degree

Storage Temperature

-20 to 70 degree

PD Charging

PD3.0 up to 96W (20V/4.8A)

Dimension (L x H x W)199.5(L) x 74.8(W) x 31.1(H) mm
* Specification is subject to change without notice.
