DB9 / RS-232 Cable Tester with USB power cable and Battery Box , Cable Tester

型號
ASM20CT
製造地
台灣
供應商
翔鈦國際有限公司更多該商品之資訊
請求報價
聯繫供應商

主要特徵

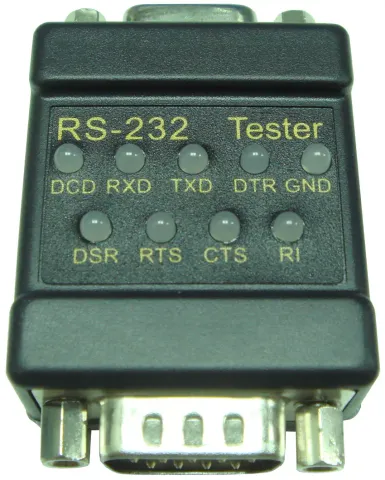

DB9 / RS-232 Cable Tester with USB power cable and Battery Box (ASM20CT)
•DC 5V Power required
•With 9 Blue LED display test
•Standard DB9-F / DB9-M Cable Tester
•DB9 Cable full pin test
•LED scan DB9 1~9 pin (DB-9 Cable must With shell)
•LED display test result
•Test Open & Short
•Open / Short : LED NO Light
•With DB-9 / F & DB-9 / M Connectors
•Easy to install , Plug & Play
•With 5V / 3.5mm power jack (Inner + / Outer -)
•With 5V USB power cable
•Testing current - with / without cable : 4mA / 0.12mA
•Power jack :Center pin / 1.3mm
•Compact size / Housing : Plastic , Weight : 55g
•Dimensions (L*W*H) : 45 * 35 * 21 ( mm ) body

最近更新 : 2024-09-30
