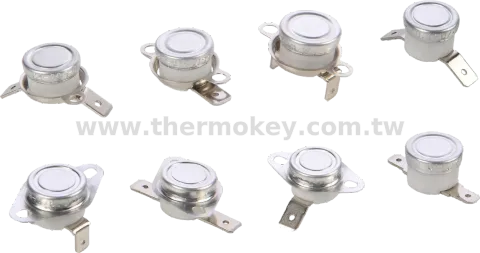

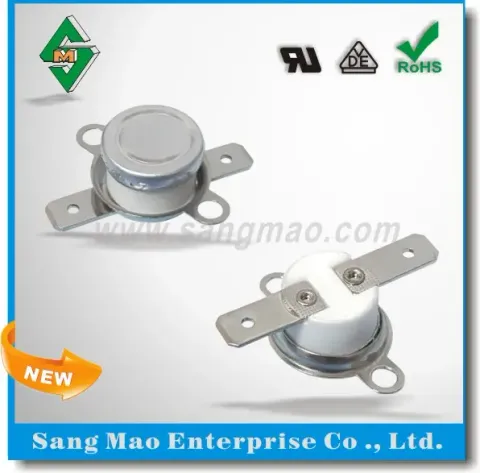

C4 Series Auto Reset Ceramic Thermostat
Applications:
Espressor machines, Vending machines, Toaster, Photo copier, Roomheater, UPS, Microwave, and Other household appliances and heating appliances.
Approvals:
Electrical Specification:
- Electrical Ratings：
C4/1C4 Series：AC 250V/10A , AC 125V/15A
1C4A Series：AC 125V/15A - Dielectric Strength：AC 1500V , 60 sec
- Insulation Resistance：100 MΩ or more
- Contact Risitance：50 mΩ or less
- Life Cycles：
C4/1C4 Series：Over 100,000 cycles under rated load
1C4A Series：Over 6,000 cycles under rated load
Thermal Specification:
- Ambient Temperature：C4 Series(250℃)
- Actuating Temperature：
C4 Series (Maximum 205℃)
1C4 Series (Maximum 185℃)
1C4A Series (Maximum 185℃) - Tolerance：±3℃、±5℃
- Differential：
C4/1C4 Series：Normally 10℃ to 20℃ and other differentials can be specified
1C4A Series：Reset temperature can be specified
Other Features:
- Compact dimension with high load capacity
- High operating speed
- Current insensitive
