放大

頻率響應, 環路增益, 波德圖, 相位增益, 向量網路分析儀, Bode 100, VNA, FRA

型號
Bode 100
供應商
特律興企業股份有限公司更多該商品之資訊
請求報價
聯繫供應商

頻率響應, 環路增益(loop gain), 波德圖(Bode), 增益(Gain Margin), 相位(Phase Margin), 回授頻寬, 穩定度, 相位邊限, 向量網路分析儀, VNA, FRA, Bode 100

規格

  • 類型 : Electricity meter

主要特徵

針對所有電源設計 (PWM IC、BUCK、DC-DC Converter、Feedback Loop Gain, Digital Power 、OP Amp、Fixed Regulator、LDO、Common-mode Choke、RFID)

量測 頻率響應, 環路增益, 波德圖, 相位, 增益, 阻抗, 共振頻率, 電源抑制比,

PSRR (Power Supply Ripple Rejection Ratio)

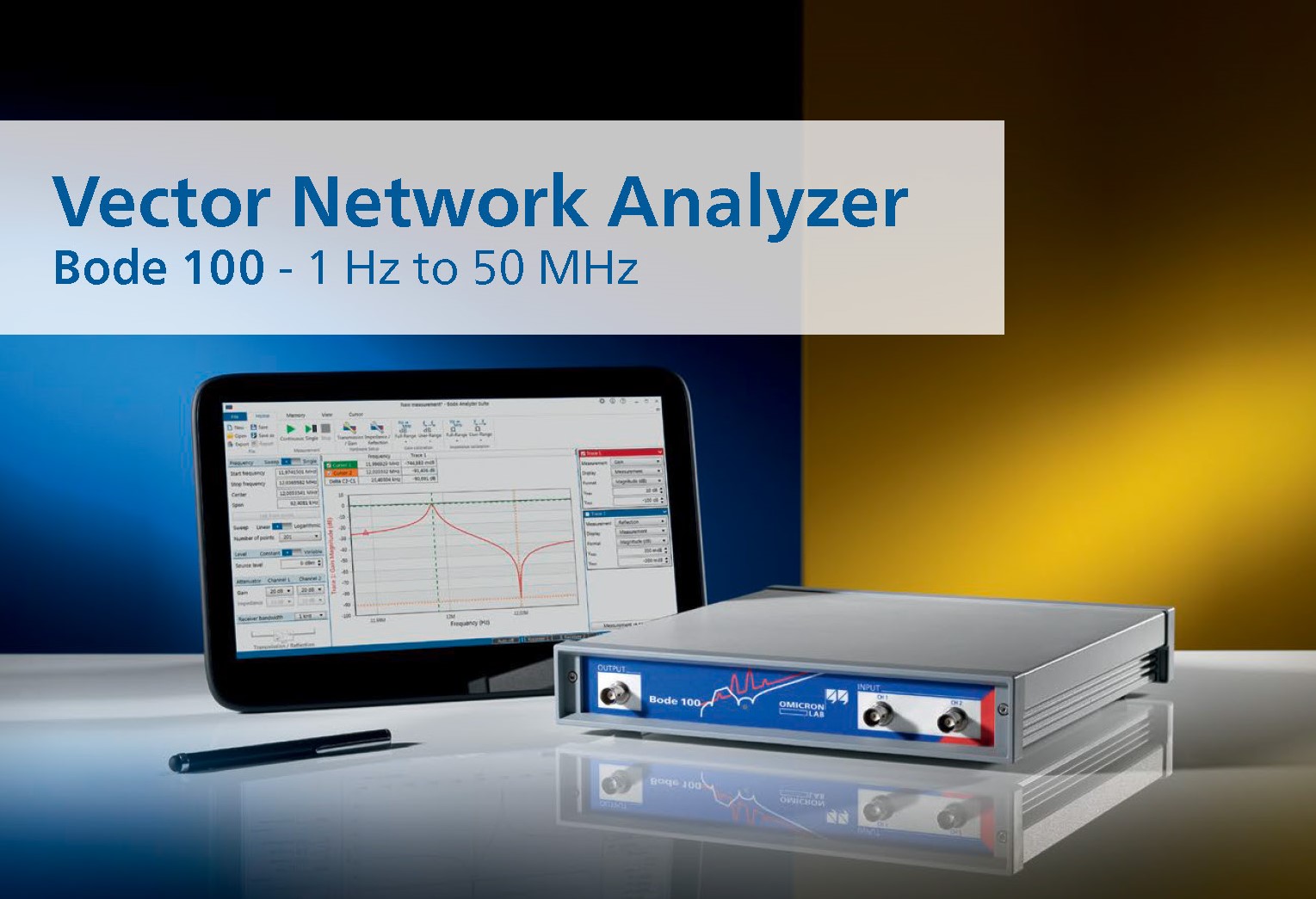

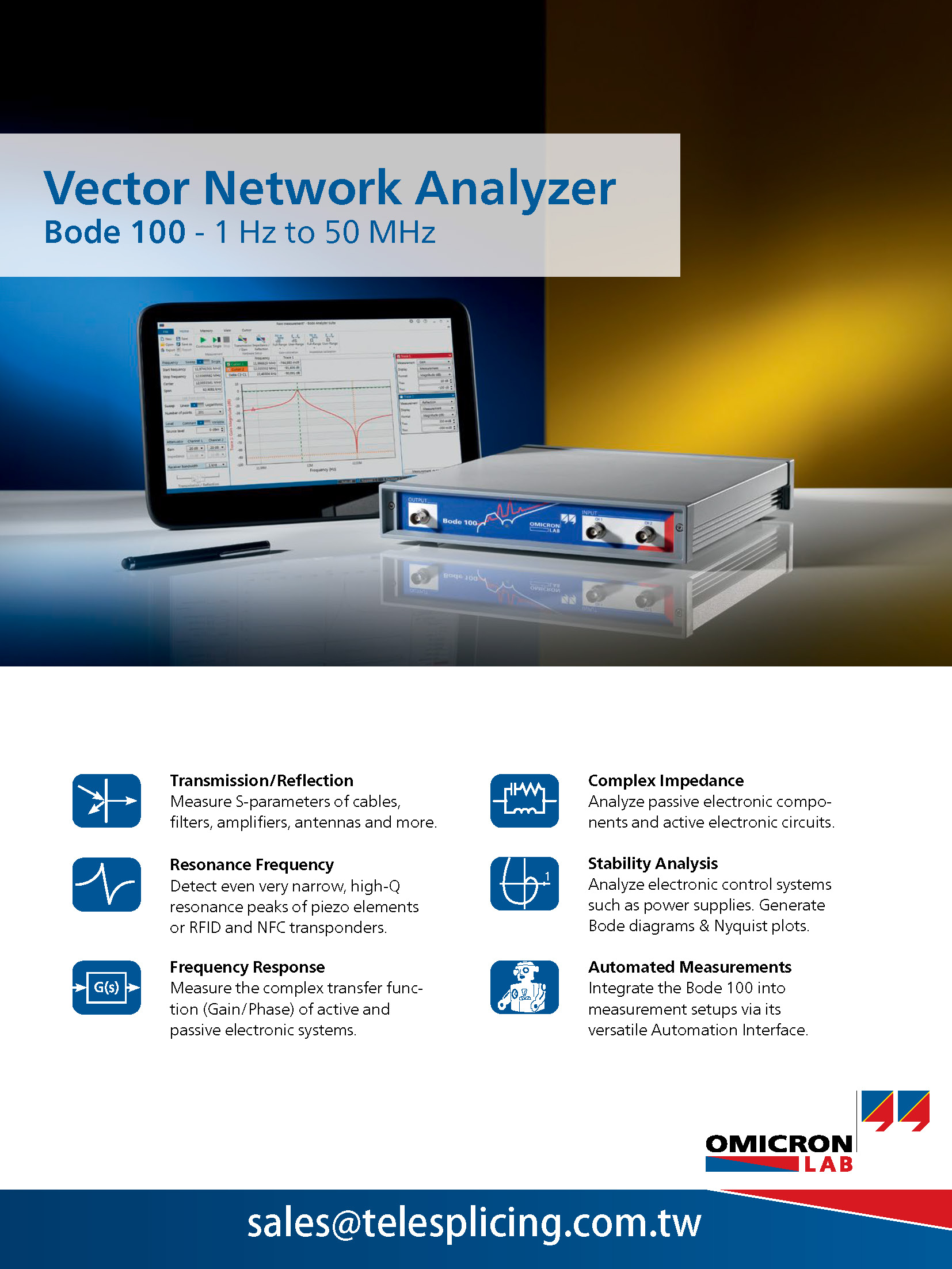

Vector Network Analyzer - Bode 100

With the multifunctional Bode 100 you get an exact picture of your electronic circuits and components in a frequency range from 1 Hz to 50 MHz.

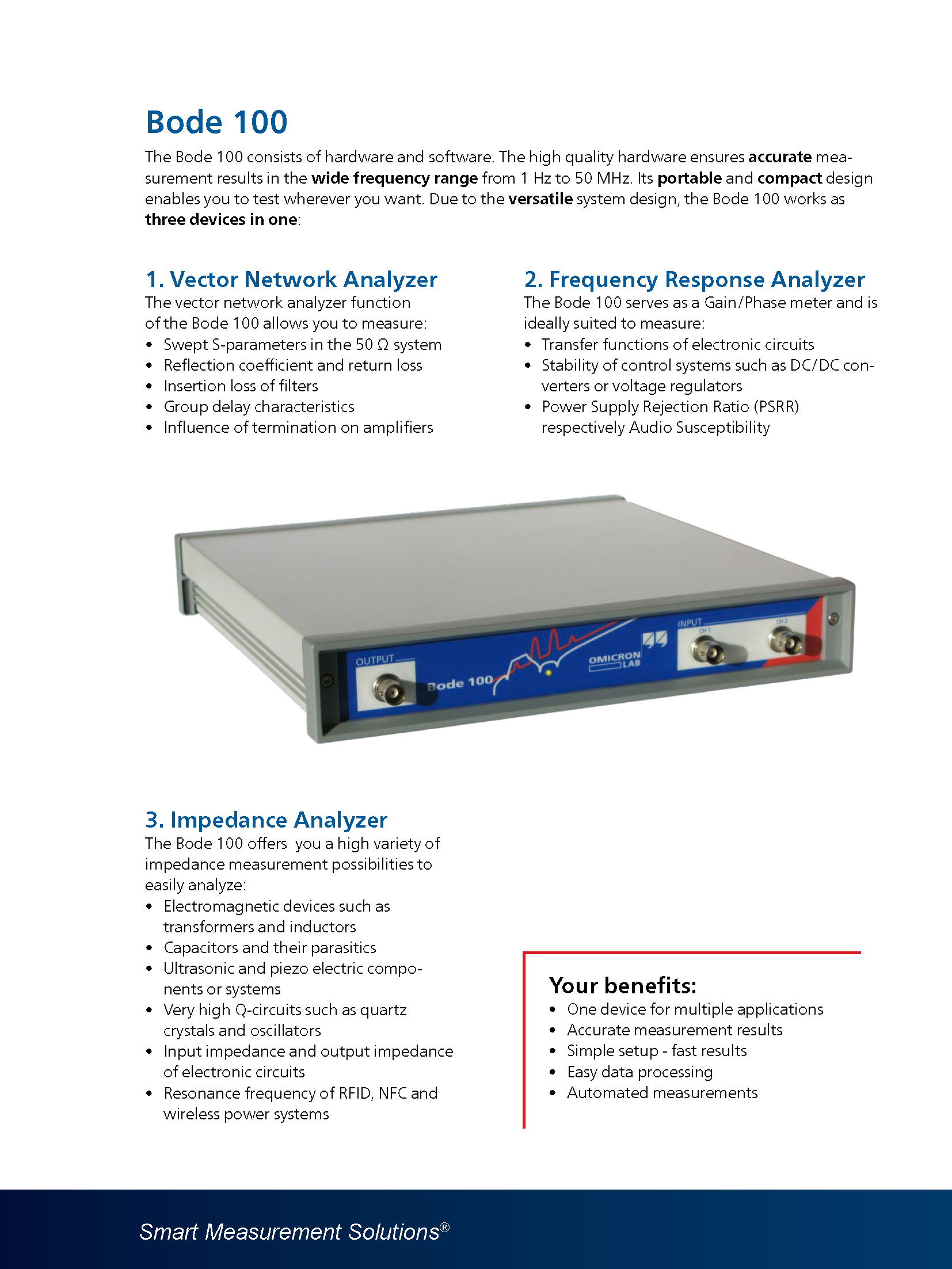

Bode 100 is state of the art Vector Network Analyzer which also works as:
  • Frequency Response Analyzer
  • Gain/Phase Meter
  • Impedance Analyzer
  • Sine Wave Generator
With its high accuracy and unbeatable price-performance ratio, the Bode 100 is the best choice for industrial applications as well as research and educational labs.

Use Bode 100 to measure:

  • Complex gain of active and passive circuits
  • Complex impedance and admittance of active and passive devices
  • Swept S-parameters of electronic circuits and filters
  • Group delay characteristics

Easily analyze:

  • Stability of control circuits such as DC/DC converters in power supplies
  • Parasitics of passive components and circuit boards
  • Power-plane impedance for optimum decoupling
  • Reflection coefficient and return loss of filters, antennas or amplifiers
  • Ultrasonic and piezoelectric devices
  • Resonance behavior of high Q-circuits like oscillating crystals
  • Resonance frequency and Q-factor of RFID and NFC tags and antennas

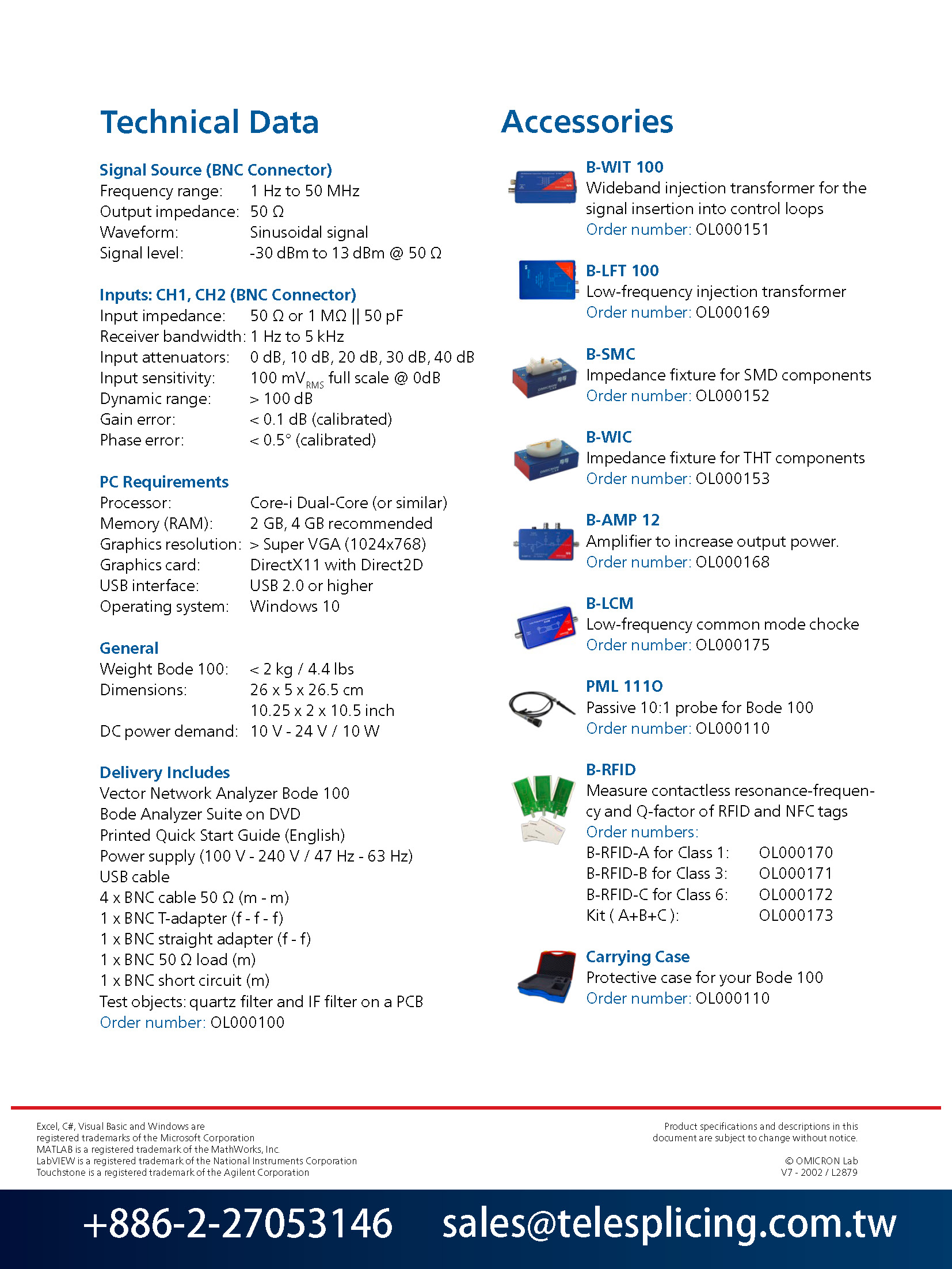

Features of Bode 100:

  • Wide frequency range from 1 Hz to 50 MHz
  • Adjustable output level from -30dBm to 13dBm
  • Adjustable shaped level (variable signal level) over frequency
  • Switchable channel input impedance (50 Ω / 1 MΩ)
  • Highly sensitive inputs (superheterodyne receiver with 24-bit ADCs)
  • Narrow-band receivers for highest noise rejection
  • Flexible hardware design offering several measurement modes
  • Fanless and therefore absolutely silent on your bench

附件

影片

    實際量測 頻率響應 向量網路 相位增益 波德圖 分析儀 (Bode 100) 中文


最近更新 : 2024-10-15
